Applications

XY AC-E7 wall-mounted AC charger is composed of main control unit, human-computer interaction interface, charging interface, metering and charging unit.It’s resistant to vibration and has complete protection functions,the protection class is IP54, which covers a small area, meets the installation and use of indoor an

1. Perfect charging protection such as input over/under voltage, connection abnormality, emergency stop

2. Protection against lightning protection, leakage, short circuit, over current, over temperature, reverse battery connection, etc.

3. Wall-mounted installation, cover an area of an area small, easy to install

4. Touch screen operation interface, charging mode can be set up to fill automatically, charging according to electric quantity, charging according to amount and charging according to time, etc.

5. Support swiping card/ WeChat Mini Program starts

6. Support IEC 61851 standard charging

Application scenario

XY AC-E7 wall-mounted AC charger is composed of main control unit, human-computer interaction interface, charging interface, metering and charging unit.It’s resistant to vibration and has complete protection functions,the protection class is IP54, which covers a small area, meets the installation and use of indoor an

Technical parameter

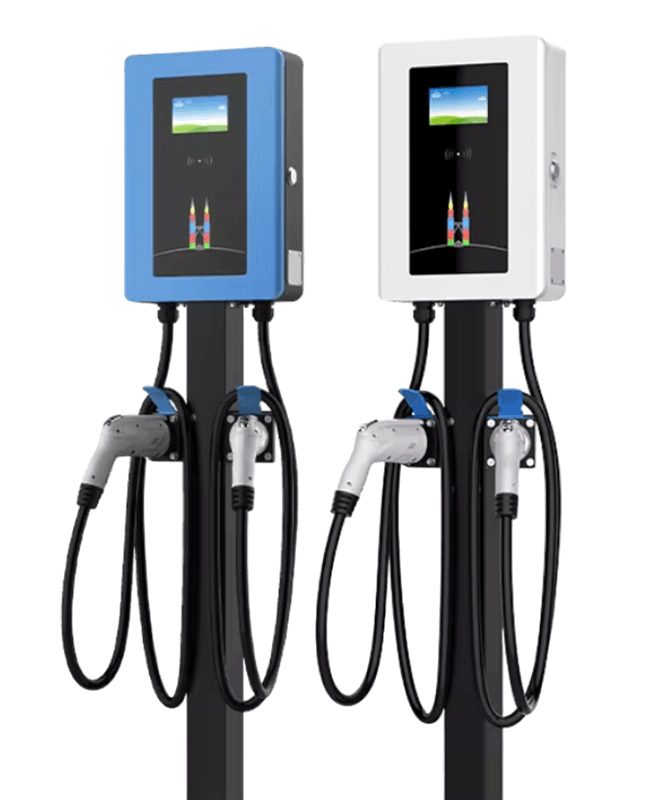

Model XY AC-E14-14KW
Electrical index
Power connection 1P+N+PE
Input Voltage 220VAC±10%
Rated power 14KW
Rated current 32A
Frequency 45~65Hz
General Specifications
Charging Standard IEC 61851-1,IEC 62196-22
AC plugs IEC 62196-2 AC Type2
Display 4.3”TFT Color touch screen
RFID system Mifare (Classic,DesFire EV1)or others on request
Communication GPRS /LAN/Wi-Fi
Communication Protocols OCPP1.6
Place of installation Indoor and outdoor
Cooling mode forced air cooling
Altitude 2000m
Waterproof standard IP54
Operating Temperature -20~60℃(Derating over 50℃)
Storage Temperature -40-70℃
Humidity 5%~95%without condensation
Cooling mode Natural cooling
Length of charging gun cable 4m(optional)
Dimensions(W*D*H) 300mm*110mm*420mm
Weight 11kg

Case recommendation

We’re experts in electric vehicle charging station installations around China in many different settings. We can install a wall or post-mounted EV Chargers, charging station for on-street parking, payment systems and back-office support, Electric Vehicle charging stations in garages, carports and driveways and can integrate with solar PV systems or energy storage system so people can charge their electric vehicles using renewable energy.
