Compact, user-friendly, touch screen.

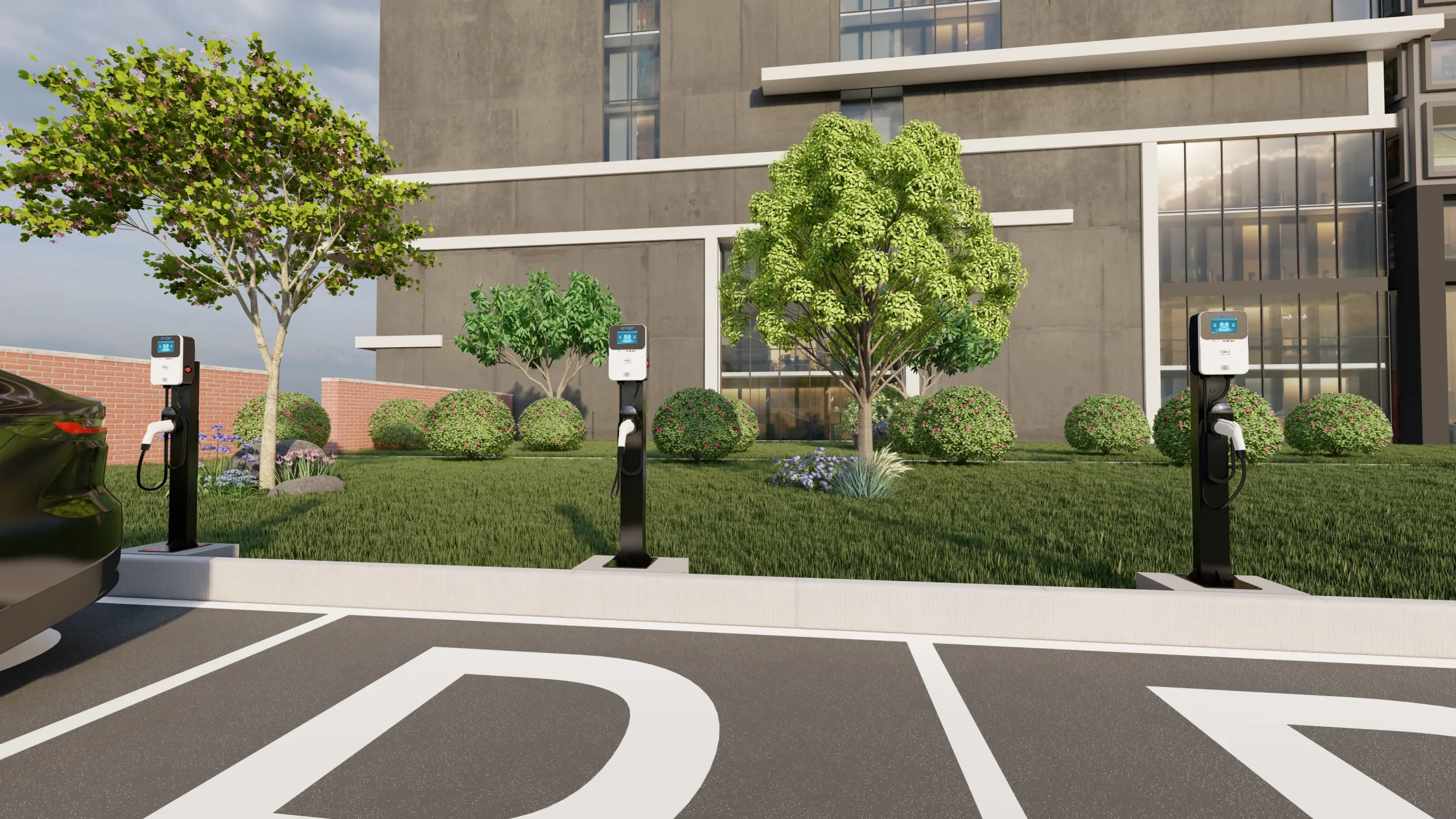

This mini AC EV charger is engineered for versatile installation in spaces where electric vehicles are parked for extended periods. Its sleek and compact profile minimizes the footprint, making it perfect for private garages, residential community parking lots, corporate campuses, and commercial facilities. The unit provides a dependable and accessible charging point, seamlessly integrating into the user’s daily routine for hassle-free EV ownership.
The integrated 4.3-inch TFT color touchscreen allows for clear display of charging status and straightforward user interface. Authentication via RFID card facilitates controlled access and easy billing. Communication options like LAN, Wi-Fi, or GPRS connect the charger to back-end management platforms using the standardized OCPP 1.6 protocol. This enables full oversight of both charging points, including session initiation, real-time monitoring, fault reporting, and software updates.
These appliances operate using natural convection cooling, delivering reliable power across a broad range of environmental conditions while maintaining minimal noise levels.
| Model | XY AC-E7KW-P |
| Input | |
| Grid Connection | Single phase (L+N+PE) |
| Voltage Range | 230Vac ± 10% |
| Maximum Current | 32A |
| Rated Frequency | 50Hz |
| Output | |
| Voltage Range | 230Vac ± 10% |
| Maximum Current | 32A |
| Maximum Power | 7kW |
| System | |
| Charging Connector | IEC 62196 Type 2 Cable |
| Cable Length | 5m (7.5m optional) |
| Housing Material | PC + ABS |
| Indicator | LED+LCD (LCD optional) |
| RFID Reader | Mifare (Classic, DesFire EV1) or others on request |
| Authorization Mode | Plug & Charge / RFID card / App |
| Communication | GPRS /LAN/Wi-Fi |
| Protocol | OCPP 1.6J |
| Safety | |
| RCD | Type A + 6mA DC |
| Ingress Protection Rating | IP55 |
| Protection | Over Current Protection, Residual Current Protection, ,Surge Protection, Over/Under Voltage Protection, Over/Under Frequency Protection, Over Temperature Protection,Relay Welding Detection |
| Certification | CE |
| Certification Standard | IEC 61851-1:2017,ENIEC 61851-1:2019,EN 61000-6-2, EN 61000-6-4, EN IEC 61851-21-2 :2021 |
| Dynamic Load Balance | Yes (Smart meter)(optional) |
| Environment | |

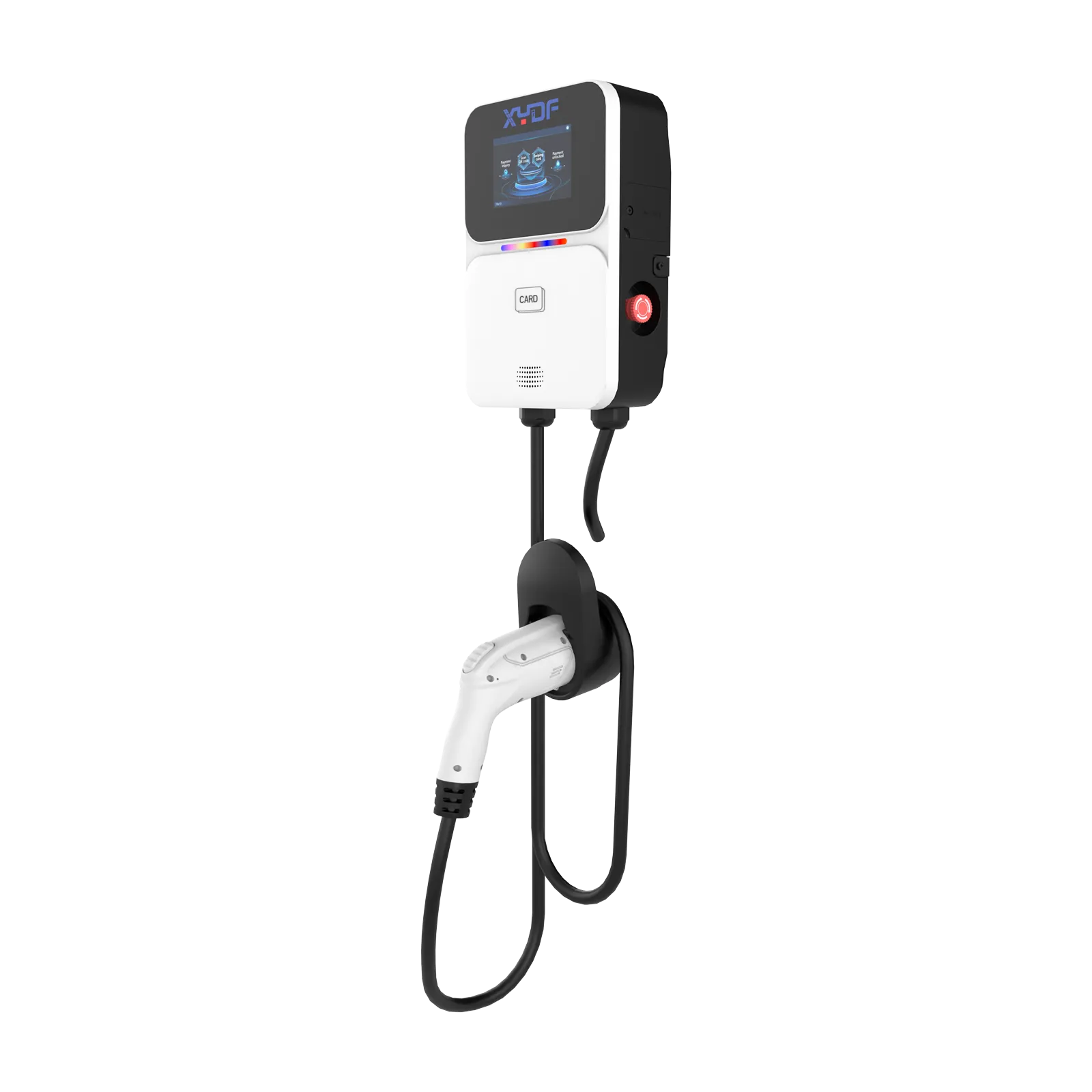

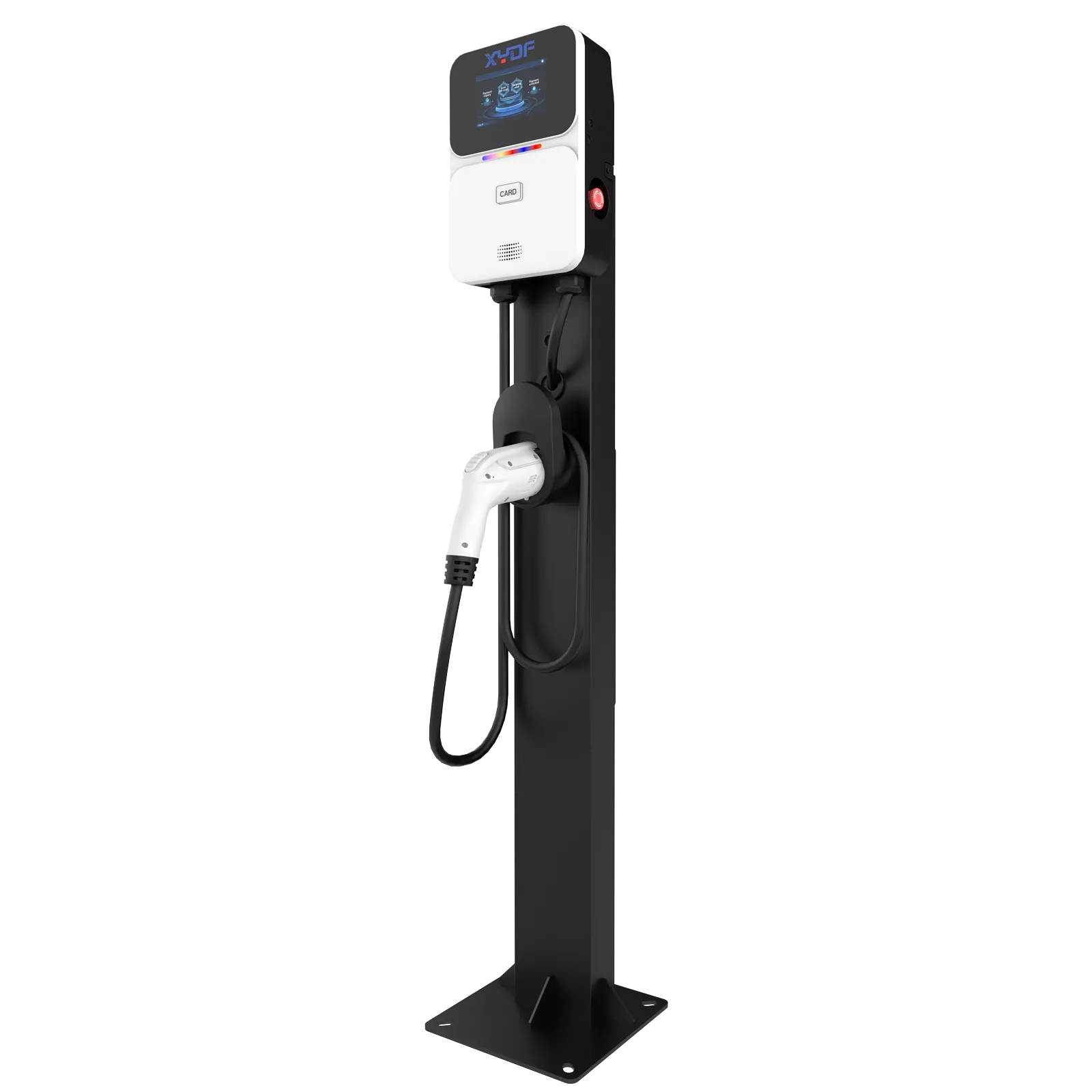

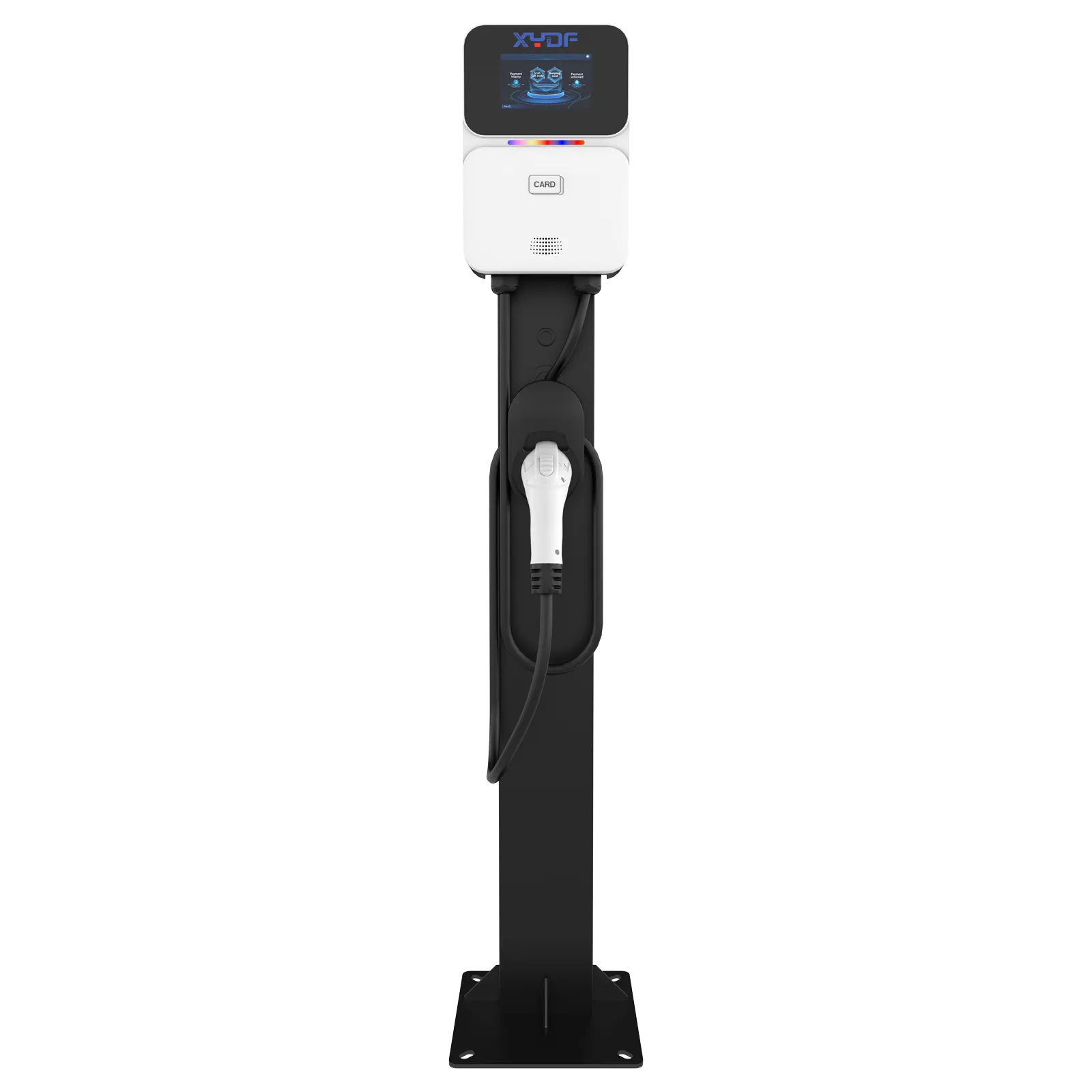

| Installation | Wall-mounted / Pedestal-mounting |
| Operating Temperature Range | -30oC – 50oC (>50oC derating) |
| Relative Humidity | 5% – 95% RH |
| Cooling | Natural convection |
| Operating Altitude | <3000m |
| Product Dimension (W×H×D) | 270*80*185mm |
| Net Weight | ≈3.5kg |
The 7kW EV charger is a compact EV wall charger 7kW designed for home and commercial use. Also known as a home EV charging station, it delivers reliable, safe, and efficient daily charging with smart energy management features.
A 7kW EV charger is a Level 2 AC EV charger designed for residential and commercial use. It provides safe, stable, and efficient charging, making it ideal for overnight home EV charging.
A smart EV charger includes advanced features such as dynamic load balancing, remote diagnostics, and app-based control. These capabilities help optimize energy usage and improve charging efficiency for home environments.
Most electric vehicles can be fully charged in 6–10 hours using a 7kW EV charger. It typically provides around 25–30 miles (40–50 km) of range per hour, making it perfect for overnight charging.
Clear charging information and intuitive operation for daily home use.
Secure user authentication and controlled access for multiple users.
Supports remote monitoring, diagnostics, and smart charging management via OCPP 1.6.
Flexible connectivity for smart EV charging systems and remote control.
Ideal for daily residential EV charging and overnight use.
Shared EV charging solutions for residential communities.
Suitable for offices and small-scale business environments.
Reliable charging for company and logistics vehicles.
| Feature | 7kW Charger | 22kW Charger |
|---|---|---|
| Power Supply | Single-phase | Three-phase |
| Charging Speed | Standard | Faster |
| Use Case | Home | Commercial |
| Power Output | 7kW |
| Voltage | 230V |
| Current | 32A |
| Connector | Type 2 |
| Protocol | OCPP 1.6 |
| Communication | WiFi / LAN / GPRS |
| Protection | IP55 |
Compatible with Tesla, BMW, Audi, Mercedes-Benz, Toyota, Honda, BYD, Chevrolet and more.
A 7kW EV charger typically provides around 25–30 miles (40–50 km) of range per hour, making it ideal for overnight home charging.
Most EVs can be fully charged within 6–10 hours depending on battery size and state of charge.
Yes, a 7kW EV charger is the most common and practical solution for home charging, offering a good balance of speed and efficiency.
A Level 2 EV charger is an AC charger that typically ranges from 7kW to 22kW and is widely used for residential and commercial charging.
Yes, it is compatible with most electric vehicles that use the Type 2 connector standard.
A smart EV charger allows remote monitoring, scheduling, energy management, and user access control through apps or backend systems.
Yes, RFID authentication is supported for secure and controlled charging access.
