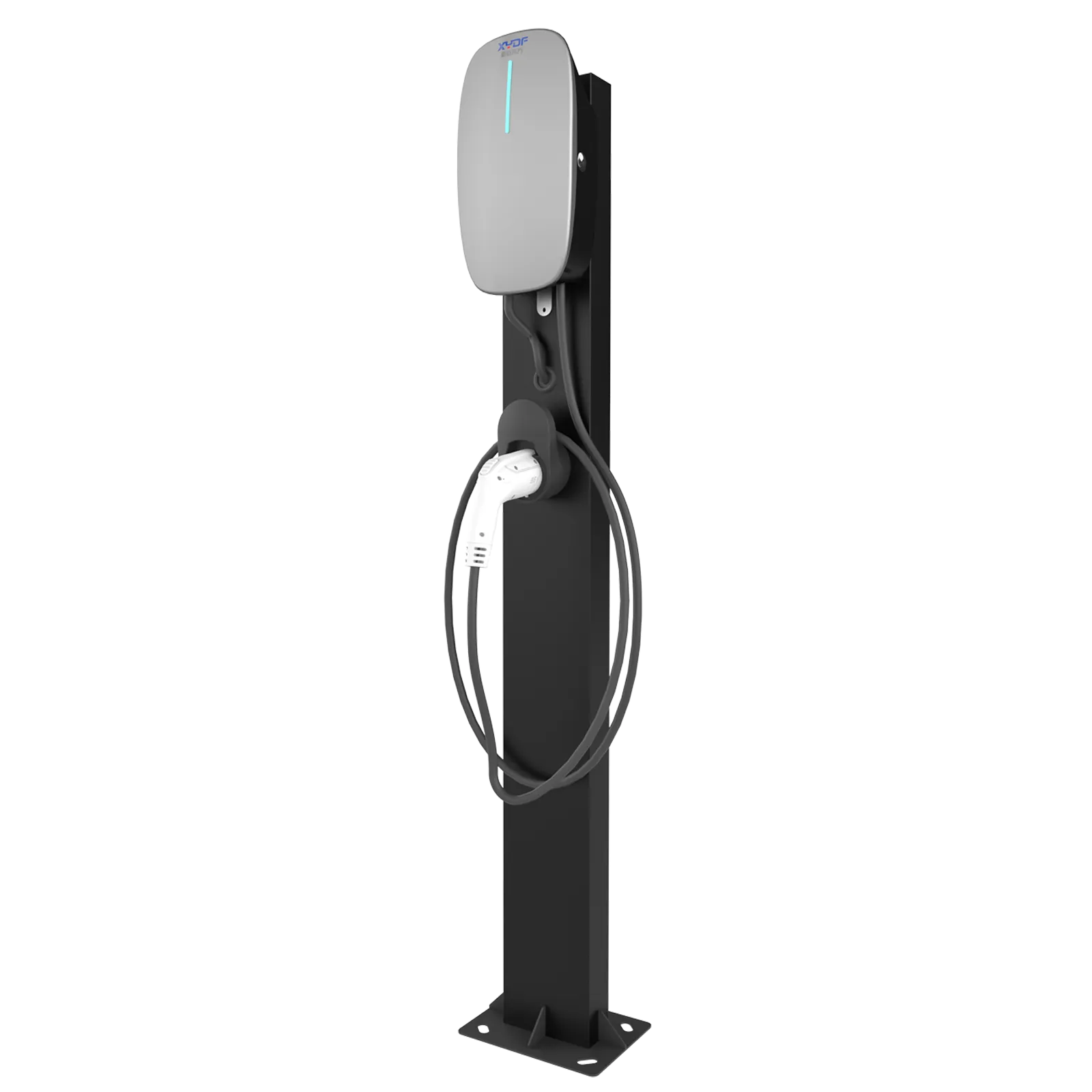

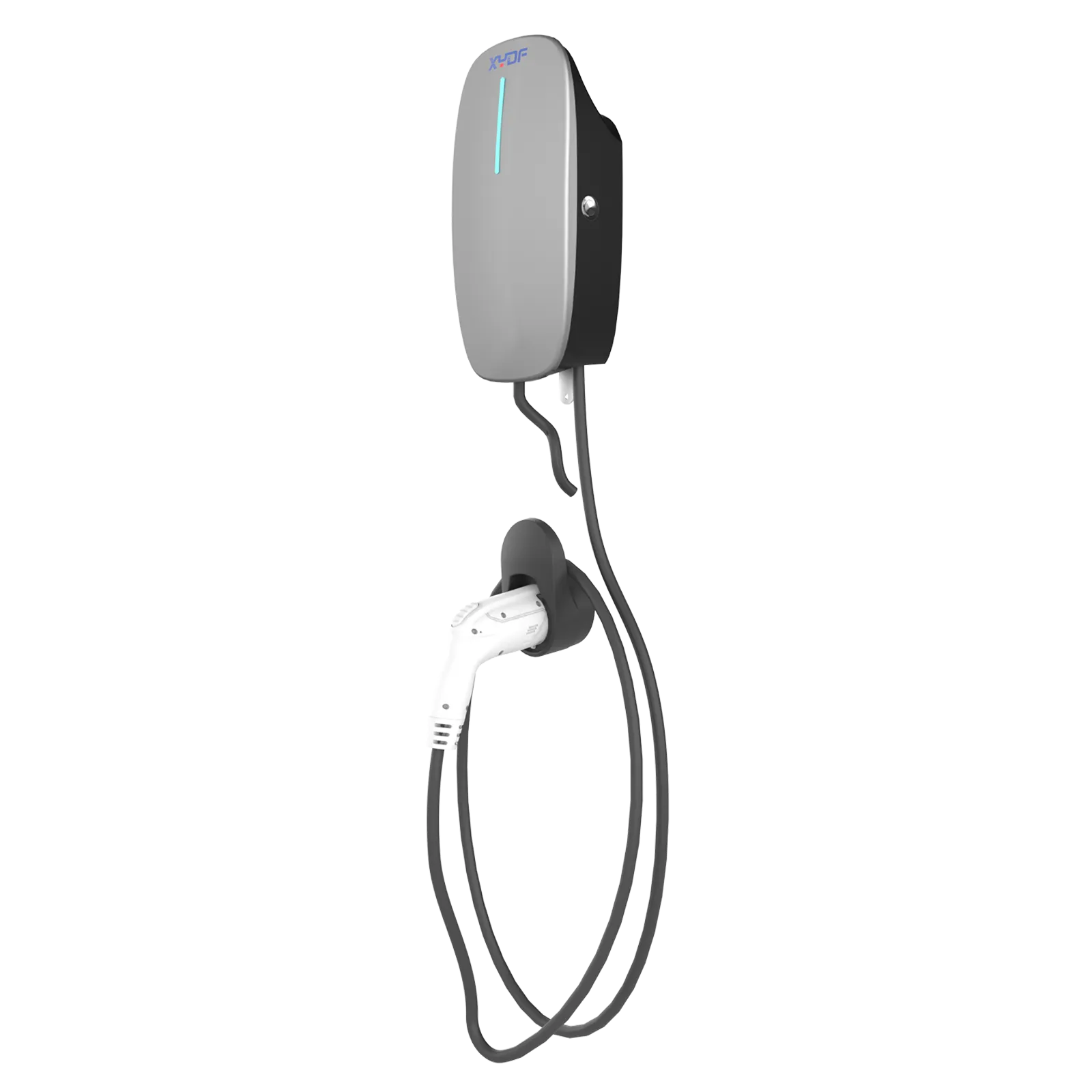

E22 Series 22kW AC EV Charger

Modern Design, IP55, Compact Enclosure

Connector Type: Type 2, Type1, GB/T, NACS
Output Power: 7kW/11kW/22kW
Communication: Wi-Fi /LAN/GPRS(optional)
Protection level: IP55
Start Mode: Plug & Charge, RFID Card or APP
Mounting: Wall-mounted/Pedestal-mounting

Get A Quote Download

Application

The E22 Series is designed for residential communities, workplaces, hotels, commercial parking areas, and fleet facilities. Available in 7kW, 11kW, and 22kW versions, it supports wall-mounted or pedestal installation, RFID and app-based access, OCPP 1.6J connectivity, and optional dynamic load balancing for efficient multi-charger deployment.

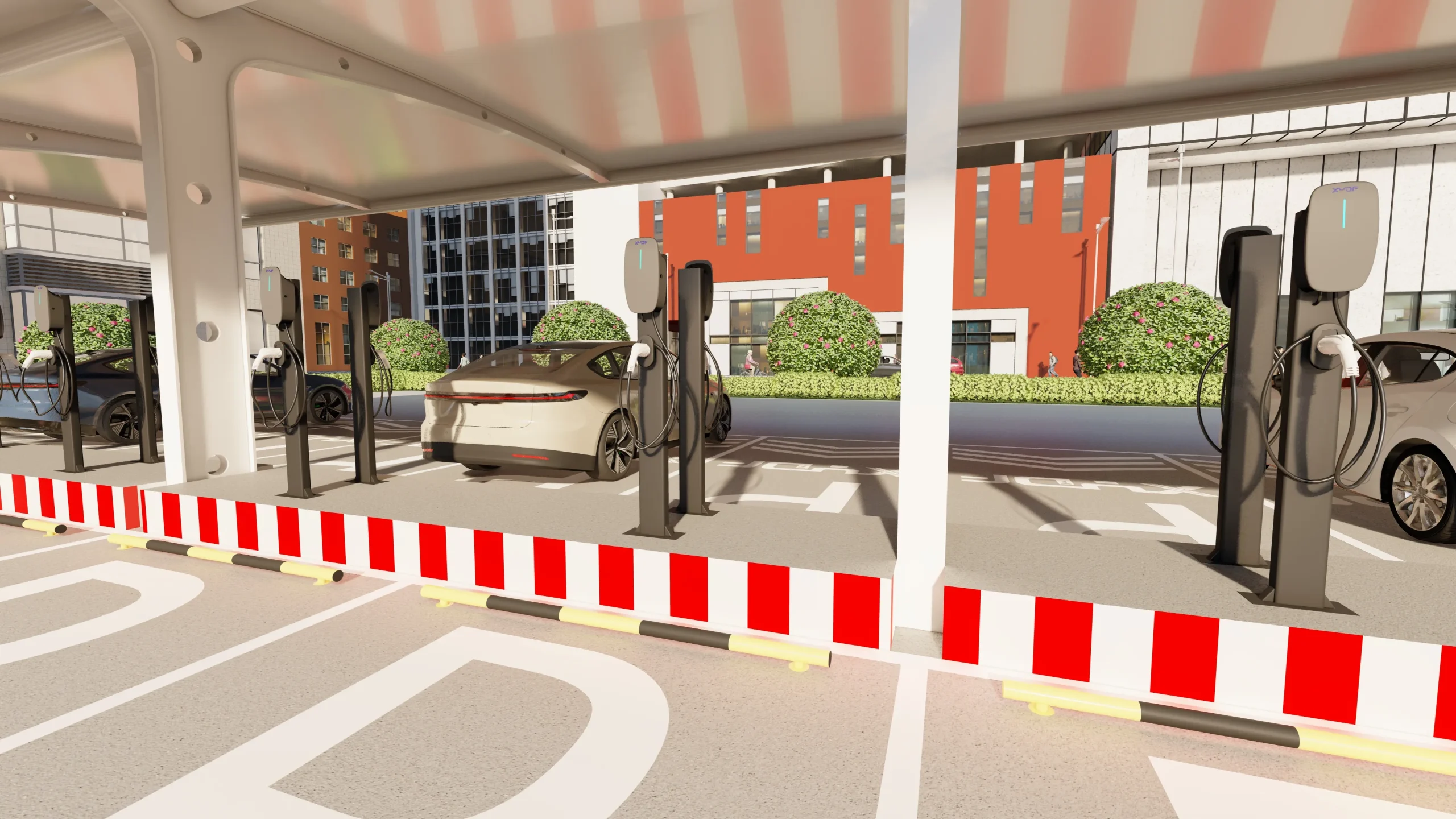

E22 Series in parking

Parameters

Model	XY AC-E22-7KW	XY AC-E22-11KW	XY AC-E22-22KW
Input
Grid Connection	L+N+PE	3P+N+PE
Voltage Range	230Vac ± 10%	400Vac ± 10%
Maximum Current	32A	16A	32A
Rated Frequency	50/60Hz	50/60Hz	50/60Hz
Output
Voltage Range	230Vac ± 10%	400Vac ± 10%
Maximum Current	32A	16A	32A
Maximum Power	7kW	11kW	22kW
System
Charging Connector	IEC 62196 Type 2 Cable, SAE J1772 Type1, GB/T
Cable Length	4m (5m, 7.5m optional)
Housing Material	PC + ABS
Indicator	LED+LCD (LCD optional)
RFID Reader	Mifare (Classic, DesFire EV1) or others on request
Authorization Mode	Plug & Charge / RFID card / App
Communication	GPRS /LAN/Wi-Fi
Protocol	OCPP 1.6J
Safety
RCD	Type A + 6mA DC
Ingress Protection Rating	IP55
Protection	Over Current Protection, Residual Current Protection, ,Surge Protection, Over/Under Voltage Protection, Over/Under Frequency Protection, Over Temperature Protection, Relay Welding Detection
Certification	CE,CB
Certification Standard	IEC 61851-1:2017, ENIEC 61851-1:2019, EN 61000-6-2, EN 61000-6-4, EN IEC 61851-21-2:2021
Dynamic Load Balance	Yes (MID meter)(optional)
Environment
Installation	Wall-mounted/Pedestal-mounting
Operating Temperature Range	-30℃ – 50℃
Relative Humidity	5% – 95% RH
Cooling	Natural convection
Operating Altitude	<3000m
Product Dimension (W×H×D)	190 mm100mm350mm
Net Weight	≈3.5kg	≈4kg	≈4kg

22kW EV Charger Manufacturer & Supplier (Level 2 EV Charging Station)

As a professional 22kW EV charger manufacturer and supplier, XYDF provides high-performance Level 2 EV charging solutions for residential, commercial, and fleet applications. Our 22kW EV charging stations deliver significantly faster charging compared to 7kW chargers, making them ideal for high-demand environments.

Market Insight: The average 22kW EV charger price ranges from $400–$1200. Buying directly from XYDF ensures factory pricing and OEM customization.

Types of 22kW EV Chargers (3 Phase, Commercial & Home Charging)

22kW 3 Phase EV Charger

High-power AC charging solution for commercial and industrial use.

Single-Phase Compatible Charger

Automatically adjusts to 7.4kW for home installations.

Smart EV Charging Station

Supports WiFi, App control, RFID and OCPP integration.

Tethered & Untethered Options

Flexible cable and socket configurations.

22kW EV Charger vs DC Fast Charger (AC vs DC Charging)

A 22kW EV charger is a Level 2 AC charger that relies on the vehicle’s onboard converter, while DC fast chargers deliver direct current for ultra-fast charging.

Feature	22kW AC Charger	DC Fast Charger
Power	22kW	30kW+
Speed	Medium	Fast
Use	Home / Commercial	Highway / Fleet

Applications of 22kW EV Charging Stations

Residential Charging

Ideal for homes with 3-phase power supply.

Commercial Charging

Offices, malls and public parking areas.

Fleet Charging

Company vehicles and logistics fleets.

Real Estate

Property and community EV charging integration.

Compatible with Major EV Brands

Our chargers are compatible with Tesla, BMW, Audi, Mercedes-Benz, Toyota, Honda, BYD, Chevrolet and most electric vehicles.

22kW EV Charger Installation & Technical Specifications

Power Supply	3 Phase 400V
Current	32A per phase
Protection	Type B RCD
Connector	Type 2

22kW EV Charger Price & Wholesale Options

The 22kW EV charger price varies depending on features, certifications, and customization.

Bulk pricing available
OEM/ODM customization
Factory-direct supply

FAQ About 22kW EV Chargers

How fast is a 22kW EV charger?

Up to 90 miles per hour of charge.

What cars support 22kW charging?

Most European EVs support 22kW AC charging.

Is 22kW charger worth it?

Yes, for commercial and high-demand use.

Can I install 22kW charger at home?

Yes, but it requires a 3-phase power supply.

What is Level 2 EV charger?

An AC charger typically delivering up to 22kW of power.

Difference between 7kW and 22kW?

A 22kW charger is approximately 3x faster than a 7kW charger.

Does 22kW affect battery?

No, it is completely safe for EV batteries as the car's onboard converter manages the intake.

Certifications

CE TUV RoHS ISO9001
