32“ Screen, Commercial Prime

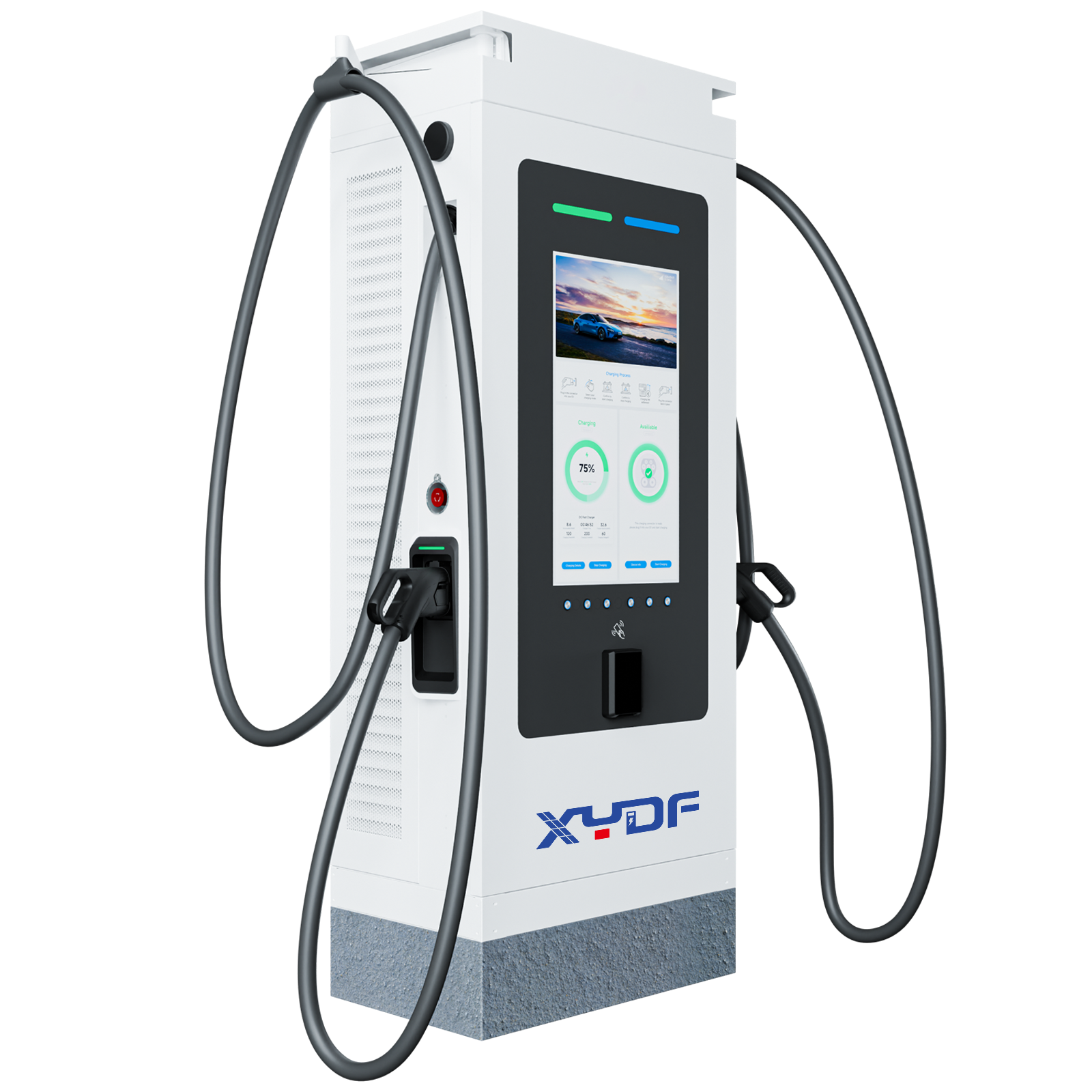

The series DC fast charging stations ranging from 60kW to 240kW, specifically engineered for commercial and public charging scenarios. Utilizing high-efficiency modular power modules with a peak efficiency of ≥95.8% and high output precision, it ensures fast, stable, and compatible charging across diverse EV models. Each unit comes standard with an expansive 32-inch high-brightness, anti-glare capacitive touchscreen, providing an intuitive HMIthat doubles as a powerful advertising medium. Supporting OCPP 1.6 with future-proofreadiness for OCPP 2.0.X, the system integrates multi-layer safety protocols—including plug temperature monitoring and contactor adhesion protection—to guarantee high reliability and low OPEX. Its compact, all-in-one design facilitates straightforward installation, making it the ideal choice for building an efficient, reliable, and commercially viable charging network.
| Model | XY DC-EEC2-60 | XY DC-EEC2-120 | XY DC-EEC2-160 | XY DC-EEC2-180 | XY DC-EEC2-240 |
| Input | |||||
| Voltage Range | 400Vac ± 15% | ||||
| Maximum Current | 107.4A | 214.9A | 286.5A | 322.3A | 429.7A |
| Rated Frequency | 50/60Hz | ||||
| Power Factor | >0.99 | ||||
| Output | |||||
| Voltage Range | 200 – 1000 Vdc | ||||
| Voltage Range in Constant Power Mode | 300 – 1000 Vdc | ||||
| Current Range | 2 – 200A | 2 – 400A | 5 – 532A | 5 – 600 A | 5 – 800 A |
| Maximum Output of a Single Connector | 200A | 400A | 400A | 400A | 400A |
| System | |||||
| Peak Efficiency | ≥95.8% | ||||
| Power Module | 30kW | 30kW | 40kW | 30kW | 40kW |
| Ripple Coefficient | <0.5 | ||||
| Current Sharing Coefficient | <5% | ||||
| Stabilized Voltage Precision | <0.5% | ||||
| Stabilized Current Precision | <1% | ||||
| THDi | ≤5% | ||||
| Protocol | OCPP 1.6, OCPP2.0.X (Pending) | ||||
| Customer Interface | |||||
| Display |
Type: 32” HD true color anti-glare LCD; Operating Temperature Range: -20~70oC Brightness: >1500 nits; Contrast: 1200:1; Interface: Capacitive touch screen |
||||
| Type of Connector | CCS2 | ||||
| Maximum Number of Connectors | 2 | ||||
| Connector Communication Mode | In accordance with DIN 70121 and ISO 15118 standard | ||||
| Cable Length | 5m (7.5m Optional) | ||||
| Safety | |||||
| Optimized Power Module for Better Integration | Customized charging mode to prevent the mis operation of human factor | ||||
| Interface Safety Protection | Circuit discharge function, Insulation monitoring device (IMD), Battery reverse connection protection | ||||
| Ingress Protection Rating | IP54 (IP55 Optional) | ||||
| Impact Protection | Cabinet IK10, Screen IK08 | ||||
| Protection | Short circuit protection, Over/under voltage protection, Voltage/current limitation protection, Overheat protection, SPD, Plug temperature monitoring function, Circuit contactor adhesion protection | ||||
| Emergency Stop | Disconnect the charger and EV to prevent emergency incidents | ||||
| Certification Standard | IEC 61851, IEC 62196, DIN 70121, ISO 15118 | ||||
| Certification | UKCA, CE, CB | ||||
| Environment | |||||
| Installation | Floor Standing | ||||
| Noise | ≤65dB | ||||
| Operating Temperature Range | -30oC – 50oC | ||||
| Relative Humidity | 5% – 95% (No condensation) | ||||
| Cooling | Intelligent Air-cooling | ||||
| Operating Altitude | 2000m (Derate from 2000m to 3000m) | ||||
| Dimension (Connectors not included) | W × H × D: 800×1880×500mm | ||||
| Weight | ≈230kg | ≈260kg | ≈280kg | ≈300kg | ≈330kg |
This 60kW–240kW DC fast charging station (EEC2 Series) is a high power, intelligent EV charging system designed for the new generation commercial use. Designed by the leading EV charger manufacturer and supplier, it offers the fastest charging with a superior 32-inch interactive touchscreen HMI (Human-Machine Interface), providing unmatched business efficiency and user experience.
In contrast to conventional chargers, this smart EV charging unit prioritizes on effortless usability, high availability, and advanced grid intelligence. It is the perfect option for Charge Point Operators (CPOs) and enterprises to develop a scalable, low-maintenance solution to establish a future-proof charging network.
A commercial DC fast charger, on the other hand, bypasses the vehicle’s on-board converter and sends DC directly to the EV battery, allowing for much faster refueling. The public charging infrastructure for high-power 60kW to 240kW systems constitutes a backbone providing good vehicle turnaround times.
For developers, smart investment in high-density infrastructure means future-proofing for next-gen EVs with larger battery architectures.
The EEC2 Series is best known for its 32" high-brightness, anti-reflective touchscreen. This large interface was designed for indoor use and harsh outdoor conditions, and greatly enhances the experience for the EV driver.
With its intelligent features, this EV charging station for enterprise networks is OCPP 1.6J-compliant and hardware-prepared for OCPP 2.0.1. This ensures frictionless integration with any centralized Charging Station Management System (CSMS).
The EEC2 Series features a modular power architecture, offering flexible configurations from 60kW to 240kW. This allows CPOs to scale their infrastructure efficiently as site traffic and EV adoption grow.
Provide reliable, user-friendly high-speed charging for city residents and rideshare drivers.
Enhance customer dwell time and property value with premium charging amenities.
Ensure high-uptime, efficient overnight or mid-shift charging for logistics and delivery fleets.
Facilitate long-distance EV travel with 240kW ultra-fast turnaround capabilities.
This all-in-one EV charging station consolidates advanced power conversion modules, control logic, and multi-layer safety systems into a single, compact, and highly durable cabinet.
Designed for extremely low maintenance and high reliability (Low OPEX), it features comprehensive hardware safeguards including:
| Rated Power Options | 60kW / 80kW / 120kW / 160kW / 240kW |
| Input Voltage | 3-Phase 400V AC ±15%, 50/60Hz |
| Output Voltage | 200–1000V DC |
| Charging Connectors | Dual CCS2 (Standard 5m Cable) |
| User Interface | 32” HD Interactive Touchscreen (Anti-Glare) |
| Peak Efficiency | ≥95.8% |
| Network Connectivity | 4G / Ethernet / Wi-Fi |
| Communication Protocol | OCPP 1.6J (OCPP 2.0.1 Ready) |
| Protection Rating | IP55 (Enclosure) / IK10 (Impact Resistance) |
| Cooling System | Intelligent Forced Air Cooling |
A smart EV charger is a device connected to the internet that communicates with cloud- based management systems via protocols such as OCPP. This allows for remote maintenance, load balancing, automated payment, and real-time fleet management.
Large screens (i.e. 32 inch displays) can greatly enhance the HMI (Human Machine Interface). They allow for high visibility even under direct sunlight, they show intuitive visual instructions for users and live charging metrics, reducing the users’ error rate and support calls.
A 120 kW charger will usually get you 100 miles of range in about 15-20 minutes. A 240kW ultra-fast charger charges compatible EV batteries from 10% to 80% in just 15 to 30 minutes, enabling shorter wait times on the road.
Open Charge Point Protocol (OCPP) is the worldwide standard for communication between EV charging stations and backend management systems (CSMS). It introduces hardware interoperability, enabling operators to change software networks while keeping the physical chargers.
The cost of commercial DC fast charger hardware can vary substantially based on power output (typically 60kW to 240kW) and features such as large touchscreens, but usually falls between $15,000 and $50,000. Installation and grid upgrades will contribute costs towards the overall project.
When selecting a supplier, CPOs should evaluate the manufacturer's R&D capabilities, hardware reliability (IP/IK ratings), OCPP compliance, warranty terms, and ability to provide global technical support and spare parts.
