When a facilities manager in Manchester added six 22 kW chargers to an apartment garage, the installation looked comfortably within the building’s supply. During the first cold evening, however, heat pumps, lifts, and five EVs ran together; demand crossed the agreed limit and protection disconnected the charging circuit. The chargers were not defective—the design had treated every load as static and ignored when those loads would overlap.
Summary: A EVSE charging station with dynamic load balancing measures available site capacity in real time and continuously adjusts charger current, preventing overload while distributing power according to vehicle demand and operating priorities. It can postpone an expensive supply upgrade, but it must be engineered with correct metering, fail-safe limits, communications, and the requirements of IEC 61851-1 and IEC 60364-7-722.
Dynamic load balancing is a control layer between the electrical installation and its chargers. Unlike a fixed limit, it responds as other building loads change. The IEA’s النظرة العالمية للسيارات الكهربائية 2025 reports continued rapid growth in electric-car sales, increasing simultaneous charging demand in homes, workplaces, depots, and multi-unit buildings.
A meter or current transformer measures power at the building incomer—or at the charging sub-distribution board—on every phase. The controller compares that measurement with a configured import limit and subtracts a safety reserve:
Available charging power = site limit − non-EV demand − engineering reserve
For example, a three-phase 400 V site limited to 80 A has about 55 kVA of apparent capacity. If other loads use 31 kW and the design reserves 4 kW, roughly 20 kW remains for charging at that moment. Phase current must still be checked individually; a balanced total can hide an overloaded phase.
IEC 61851-1 defines the conductive charging system and control-pilot framework, while IEC 60364-7-722 addresses electrical installations supplying electric vehicles. Neither standard turns commissioning into a software-only task: cable sizing, protective devices, earthing, RCD selection, and maximum demand remain engineering responsibilities.
For AC charging, the vehicle ultimately decides how much current it draws within the limit advertised by the charger. A 22 kW unit therefore may operate temporarily at 7, 11, or 18 kW; this is controlled charging, not a fault. OCPP 2.0.1 can support smart-charging profiles between charging stations and a management system, but premises-level overload protection should not depend solely on a remote cloud connection.
| Design factor | Fixed charger limit | موازنة الحمل الديناميكية |
|---|---|---|
| Response to building demand | Does not change | Raises or lowers charging power automatically |
| Typical utilisation | Capacity stays unused during quiet periods | Spare capacity is assigned to connected EVs |
| Overload control | Relies on a conservative worst-case setting | Uses live metering plus a hard maximum |
| Expansion | New chargers quickly reduce per-port power | Priorities can manage a larger charger group |
| TCO impact | Lower controls cost, possible earlier grid upgrade | Higher controls cost, potential upgrade deferral |
| Failure mode | Simple and predictable | Must have a tested local fail-safe state |
| تطبيق | Common constraint | Useful allocation rule | Design focus |
|---|---|---|---|
| Modern home | Heat pump, cooker, or electric shower | Protect the main fuse first | Fast local metering and phase awareness |

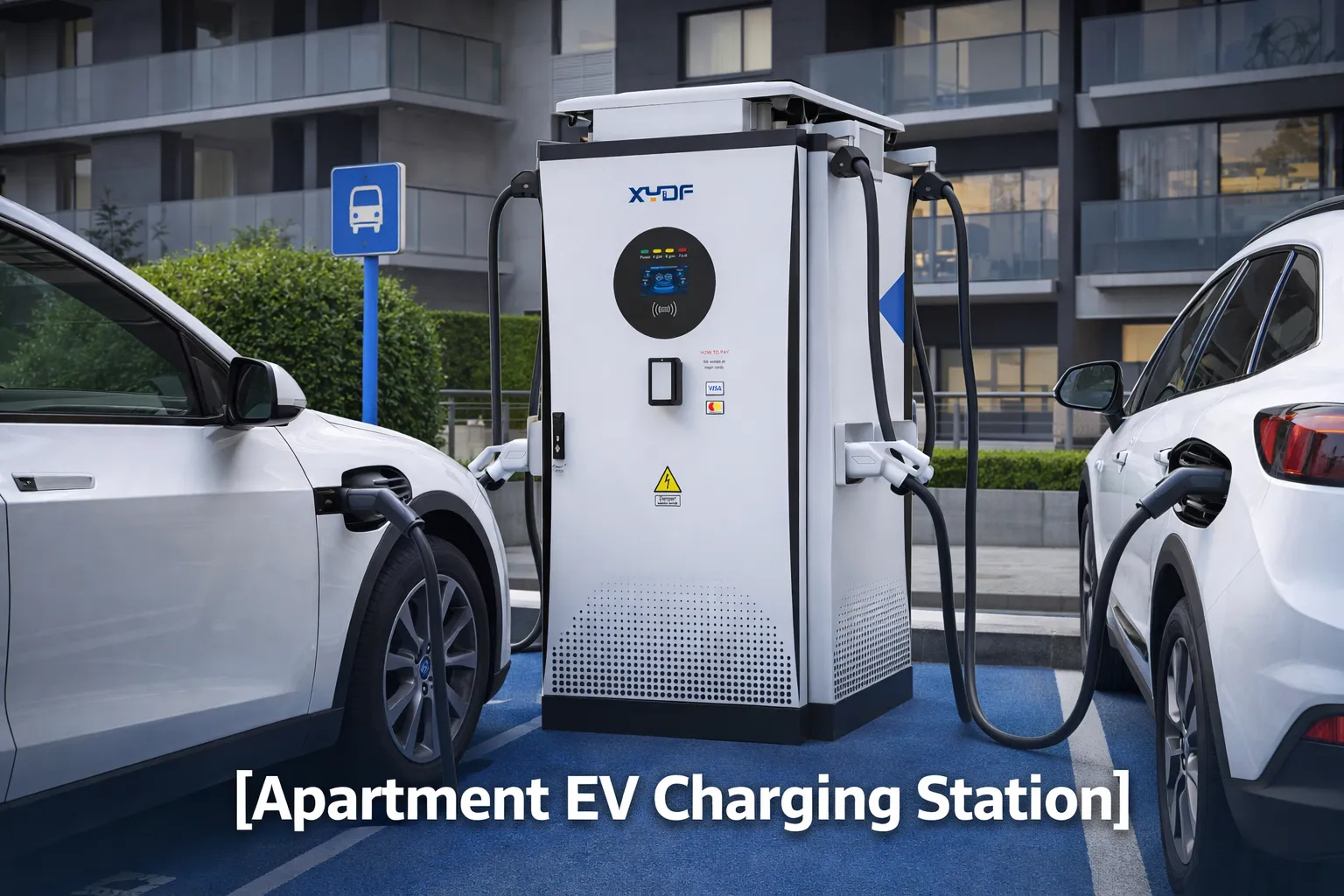

| Apartment parking | Many cars connected overnight | Fair share with minimum energy targets | User identification and billing |
| Workplace | Solar output and daytime HVAC peaks | Solar surplus plus departure priority | Tariffs and building-management integration |
| مستودع الأسطول | Vehicles have fixed dispatch times | Route-critical vehicles first | Energy delivered by departure time |
A household charger can protect an 80 A or 100 A service by reducing EV current during peaks. At a multi-port site, the controller can maintain a group limit while preventing one vehicle from consuming all available capacity. The business case should compare controls and commissioning with a new transformer or utility connection.
Non-compliance can cause nuisance disconnection, overheated conductors, inaccurate billing, missed fleet departures, or breach of a utility capacity agreement. A commissioning record should therefore include CT orientation, phase mapping, meter accuracy, loss-of-communications behaviour, maximum-current tests, and simultaneous-load tests.
XYDF manufactures smart EVSE charging station options and AC EV charger configurations for residential and commercial projects; the appropriate architecture should be selected against the local wiring code, supply limit, communications design, and required certification rather than nameplate power alone.
Yes. China operates the world’s largest EV charging network by connector count. Buyers should still distinguish public network scale from the electrical design, protocol support, and certification of an individual project.
The best charger matches the vehicle, dwell time, supply capacity, connector, environment, and management needs. For many homes and workplaces, an AC smart charger with load balancing provides a better result than choosing the highest possible rating.
Possibly, but 22 kW AC normally requires a suitable three-phase supply and a vehicle with a 22 kW onboard charger. A dynamic EVSE charging station can protect the site limit, but it cannot create capacity that the utility connection does not provide.
Common home AC ratings are 7.4 kW single-phase and 11 or 22 kW three-phase. Actual speed is limited by the vehicle’s onboard charger, the electrical service, and any active load-balancing limit.
A well-designed EVSE charging station does not promise maximum power at every second; it delivers enough energy by the required time without asking the building to exceed a safe boundary. XYDF builds charging equipment for that moment. Project teams can review the manufacturer’s engineering and production background and request a configuration based on supply data, charger quantity, priority rules, and applicable standards.
