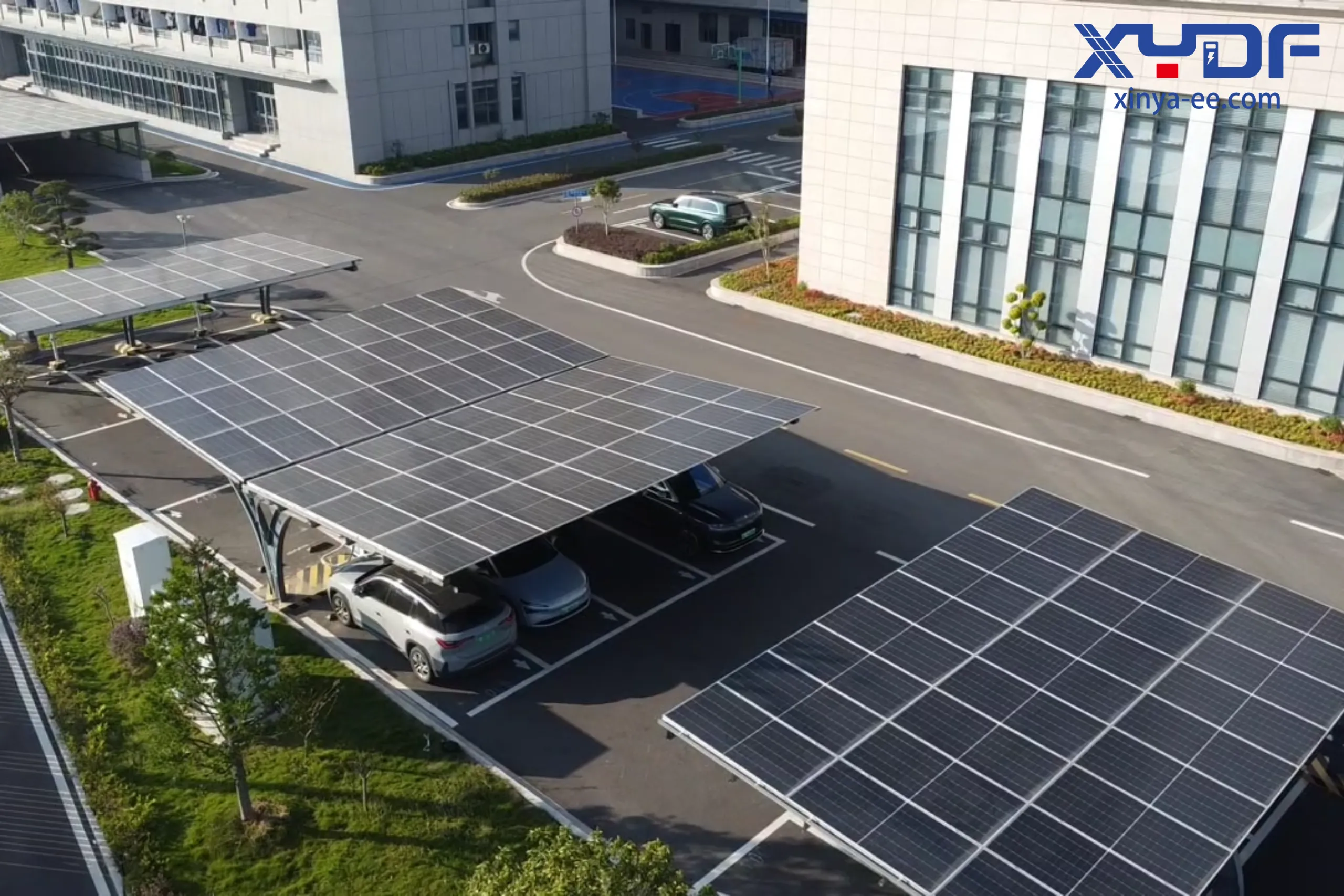

PV+ESS+EV Charging Solution

CORE BENEFITS

Make Clean Energy, Storage and Charging Work as One

Lower the Cost of Site Energy

The EMS continuously coordinates solar output, charging demand, electricity tariffs, battery SOC and grid capacity. Solar power is used first by chargers and other site loads. Surplus generation charges the battery, while low-tariff grid energy can also be stored within the site’s capacity limit. During high-price or high-load periods, the battery discharges alongside solar and the grid to reduce peak grid demand.

INTEGRATED ENERGY SYSTEM

One Control Layer Across Generation, Storage and Charging

The EMS monitors solar output, battery SOC, charging load, electricity price and grid power in real time, then adjusts the direction and level of energy flow automatically.

Solar PV

Local renewable power for chargers and site loads.

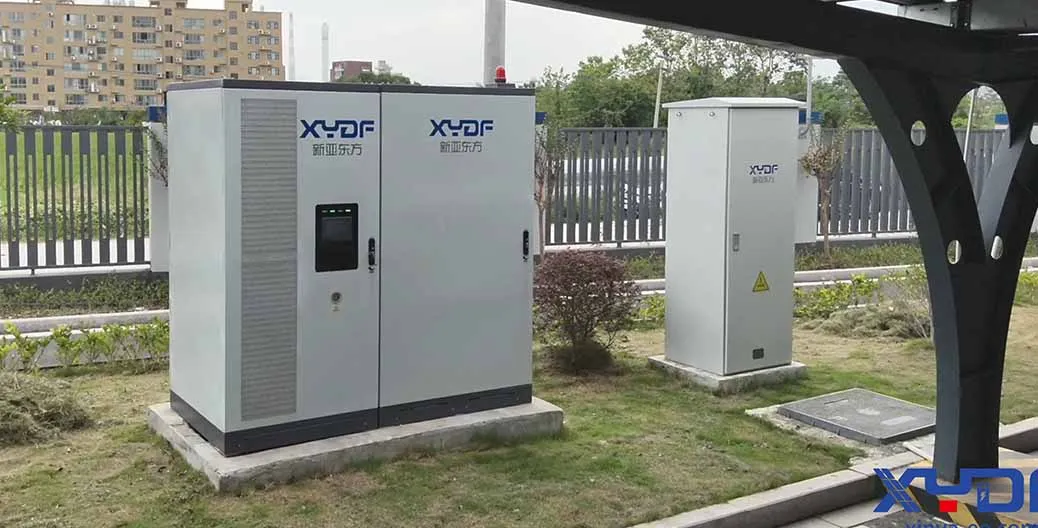

Battery Storage

Stores surplus solar or off-peak grid energy.

Power Conversion

Manages bidirectional conversion between battery and AC bus.

EV Charging

Delivers AC or DC charging within available site power.

Energy Management

Executes dispatch, peak shaving and capacity control.

SMART ENERGY DISPATCH

Dynamic Decisions Based on Real-Time Site Conditions

Dispatch is continuously optimized around solar output, battery SOC, tariffs, grid limits and vehicle demand.

01

Solar First

Solar supplies active chargers and site loads first. Surplus energy charges the battery or, where permitted, is exported.

02

Off-Peak Charging

The battery can charge from the grid during lower-tariff periods while total site demand remains within its limit.

03

Battery Peak Shaving

Stored energy supports charging peaks and reduces maximum power drawn at the grid connection.

04

Grid Support

The grid supplies remaining demand when solar and stored energy are insufficient, maintaining reliable charging service.

FLEXIBLE CONFIGURATIONS

Choose the Architecture That Fits Your Site

FULL INTEGRATED SOLUTION

Solar + Storage + Charging

Ideal for new industrial parks, fleet depots, commercial facilities and weak-grid locations with suitable solar resources.

Increase onsite solar consumption
Reduce grid purchases and peak demand
Support weak-grid or selected off-grid designs
Raise the share of clean energy used onsite

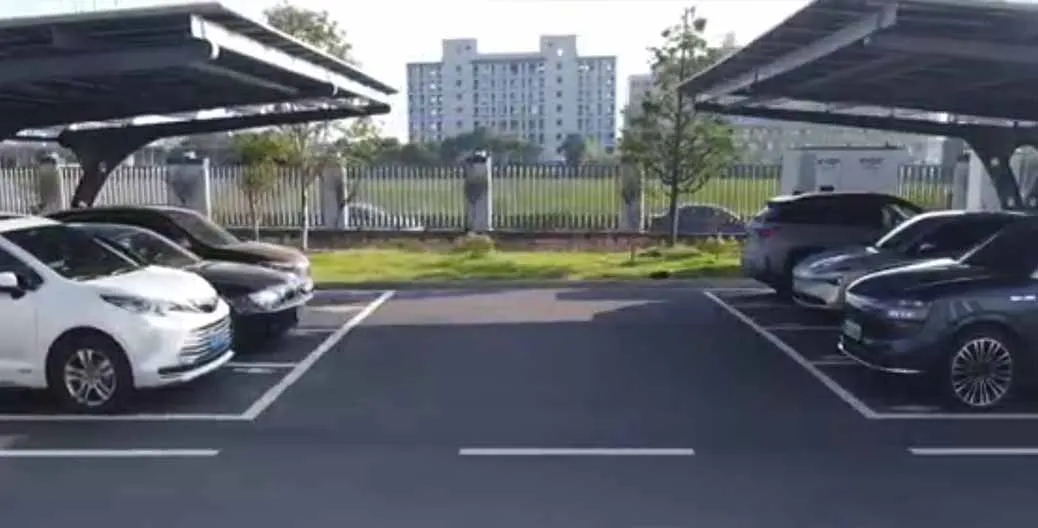

SITE UPGRADE

Storage + Charging

Designed for existing charging sites where grid expansion is costly or the difference between peak and off-peak tariffs is significant.

Reduce or defer grid expansion
Support short charging-power peaks
Charge the battery during off-peak periods
Upgrade existing charging infrastructure

Explore More

Wind PowerDiesel GeneratorHybrid EnergyCustom Solutions

EV Charger for Your Charging Energy System

Final product images and information will be selected for the project configuration.

PRODUCT IMAGEOptimized for tall equipment

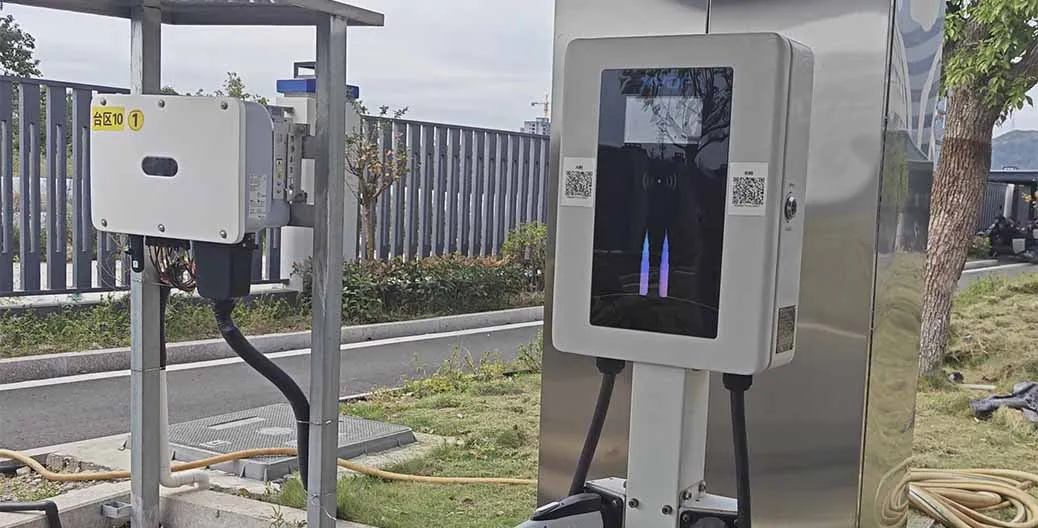

AC EV CHARGER

7-22KW AC Charger

AC Charging solution

180KW DC Fast Charger

Compact DC fast charging solution

40KW EV Charging Solution

High power charging solution

Power Control, Platform Integration and Remote Management

01

Dynamic Power Allocation

Allocate available power across chargers according to vehicle demand, priority and site capacity.

02

Grid-Connection Control

Keep total grid demand within the transformer or connection limit in real time.

03

Zero-Export Control

Coordinate metering and inverter control where export to the public grid is not permitted.

04

Remote Monitoring & Alerts

View charger status, solar yield, battery SOC, energy use and system events from one platform.

05

OCPP Integration

Connect charging equipment with compatible third-party operation, monitoring and billing platforms.

06

Flexible Operating Strategies

Configure dispatch around tariffs, site load, solar forecasts and battery SOC requirements.

PROJECT DELIVERY

From Site Assessment to Long-Term Support

01

Site & Load Assessment

Review grid capacity, load profiles, fleet schedules, tariffs and solar conditions.

02

System Sizing

Define charger power, PV capacity, storage output and usable energy.

03

Strategy Configuration

Set solar priority, off-peak charging, peak shaving and zero-export logic.

04

Integration & Commissioning

Connect chargers, EMS, PCS, BMS, meters and third-party platforms.

05

Service & Support

Provide remote support and maintainable modular system design.

WHY XYDF

Support from Charger Selection to System Integration

01

Flexible Charger Selection

AC and DC charging options for public, fleet and industrial applications.

02

Intelligent Load Management

Dynamic charging-power allocation based on site capacity and vehicle demand.

03

Open Platform Compatibility

Mainstream OCPP support for integration with charging management platforms.

04

Project-Specific Support

Configuration guidance based on site loads, grid conditions and operating goals.

FREQUENTLY ASKED QUESTIONS

Planning a Solar, Storage and Charging Project

Can battery storage completely replace a grid upgrade?

It depends on the charging load profile, available grid capacity, battery output and required discharge duration. Storage can often reduce or defer an upgrade, but sustained high-power charging may still require additional grid capacity.

Does every integrated charging solution require solar PV?

No. Battery storage and charging equipment can operate as a standalone storage-and-charging system. Solar PV can be added where site conditions allow to reduce grid purchases and increase renewable-energy use.

Can chargers continue operating during a grid outage?

Only a system designed for island operation, with suitable switching equipment and sufficient stored energy, can continue supplying selected chargers or critical loads during an outage.

How are battery power and energy capacity determined?

Sizing considers the grid-power shortfall, charging-peak duration, tariff structure, solar production, cycling strategy and the required SOC reserve.

Does zero-export control remove the need for grid approval?

Usually not. A system electrically connected to the public grid must generally comply with local approval, protection, metering and power-quality requirements.
